EPDM WaterProofing Membrane
It has very good properties in cold and hot region i.e. weather resistance at wide range of service temperature (-50 deg C to 140 deg C). Good resilience properties at low and high temperature
Excellent heat ageing and acid resistance properties.
It has very good properties in cold and hot region i.e. weather resistance at wide range of service temperature (-500 C to 1400 C) with good resilience properties at low and high temperature, excellent heat ageing properties and acid resistance properties.
OTHER APPLICATION
- Water Proofing
- Reservoir Linings
- New Proofing &re- roofing
- Insulation of the roof deck
Description
| Elongation at Break | Min 300% |
| Tear Strength | 26 kN/m |
| Tensile Strength | Min 9 MPa |
| Packaging Type | Roll |
| Color | Black |
| Size | 1 x 30 m,1.5 x 30 m (W x L) |
| Model Name/Number | TR-EPDM-120 |
| Weight | 1.5 +/- 0.20 kg/m2 |
| Brand | Siddhi |
| Usage/Application | Waterproofing |
| Thickness | 1. 2 mm to 3 mm |
| Material | EPDM Rubber |

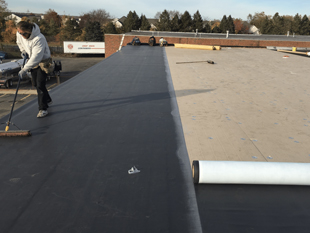

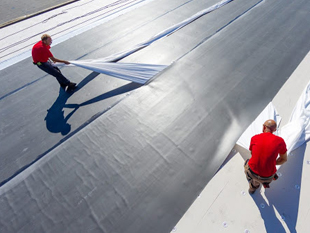

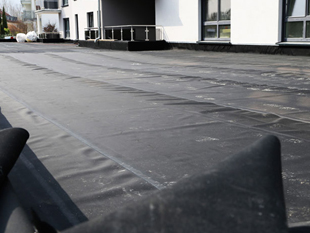

INSTALLTAION OF EPDM MEMBRANE
INSTALLTAION OF EPDM MEMBRANE
| The most ideal and durable solution specially designed to protect any reinforced concrete structure above or below ground level in the scorching desert climate of the Arabin Gulf | ||||
| TR- EPDM -150 | TR- 150-EPDM-120 | TR-EPDM-150 | ||
| TECHNICALDATA | ||||
|---|---|---|---|---|
| PARAMETER | TEST METHOD | TYPICALVALUES | ||
| Specific Weight kg/m2 | - | 1.9±0.20 | 1.5±0.20 | 2±0.20 |
| Nominal Gauge Thickness ,mm | - | 1.50±10% | 1.20±10% | 1.50±10% |
| Colour &Type | - | White Black Non Reinforced | White Black Non Reinforced | White Non Reinforced |
| Tensile strength, Min., Mpa | ASTMD412 | 9 | 9 | 9 |
| Elongation at break , Min% | ASTMD412 | 300 | 300 | 300 |
| Tear strength , Min.KN/m | ASTDM624,diE c | 26 | 26 | 26 |
| Ozone Resistance | ASTMD1149 | No Cracks | No Cracks | No Cracks |
| Resistance to outdoor (UV) weathering ASTMD26 | No Cracks, No Crazxing | |||
| Available Sizes | 1Mtr x 30mtr 1.5mtr x 30mtr |
|||
